-70%TTC Gold Brown switch 3pin RGB SMD Tactile 45g force mx clone switch backlit—
$3.55
$1.06The Story
TTC Gold Brwon Switches.
10 switches for 1 quantity
• Switch type: Tactile, soundless
• Cover: Semi transparent golden
• Base: Light golden
• Button: Brown
• Contact poles: unipolar contact
• Contact material: gold alloy

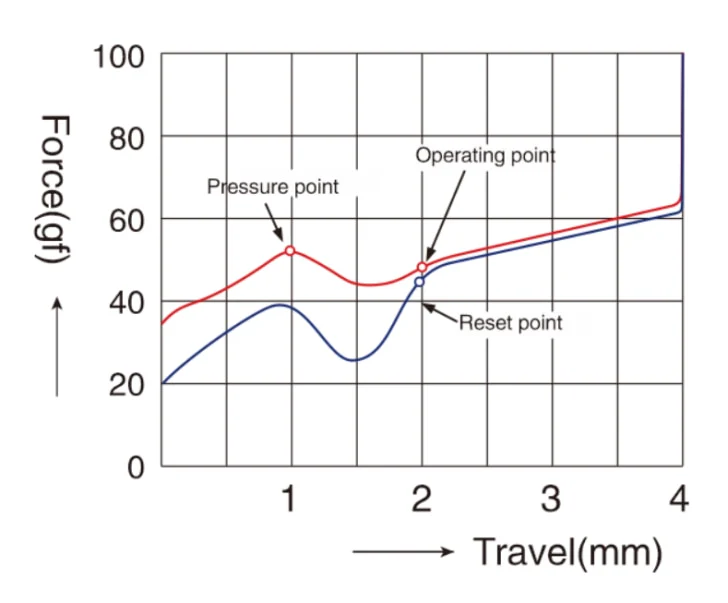

• Operating force: 45 ± 10 gf
• Pre-travel: 2.0 ± 0.3mm
• Total travel: 4.0-0.3mm
• Duration: 100 million key strokes
• Switching voltage: 2~12V DC
• Switching current: 10μA~10mA DC
• Contact resistance: 500mΩ Max
• Insulation resistance: 100MΩ Min
• Operating temperature range: -25 ℃ to + 70 ℃ ( -13°F~158°F )
• Lamp hole type: SMD, DIP customizable
• Tactile feel, no "click" sound
• No noise / spring sound during operation
• Less shaking of the switch due to the cover and the base firm fastening;
• Moderate tactile, suitable for gaming and typing
• Built with quality elastic material and double gold contact structure, the duration is up to 100 million strokes, which is twice that of ordinary mechanical switches
• The upper cover and the base are hollowed out, leaving rooms for SMD lamps and the DIP lamps
• Built on fully automatic assembly and testing integrated lines, good product consistency
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
TTC Gold Brwon Switches.
10 switches for 1 quantity
• Switch type: Tactile, soundless
• Cover: Semi transparent golden
• Base: Light golden
• Button: Brown
• Contact poles: unipolar contact
• Contact material: gold alloy
• Operating force: 45 ± 10 gf
• Pre-travel: 2.0 ± 0.3mm
• Total travel: 4.0-0.3mm
• Duration: 100 million key strokes
• Switching voltage: 2~12V DC
• Switching current: 10μA~10mA DC
• Contact resistance: 500mΩ Max
• Insulation resistance: 100MΩ Min
• Operating temperature range: -25 ℃ to + 70 ℃ ( -13°F~158°F )
• Lamp hole type: SMD, DIP customizable
• Tactile feel, no "click" sound
• No noise / spring sound during operation
• Less shaking of the switch due to the cover and the base firm fastening;
• Moderate tactile, suitable for gaming and typing
• Built with quality elastic material and double gold contact structure, the duration is up to 100 million strokes, which is twice that of ordinary mechanical switches
• The upper cover and the base are hollowed out, leaving rooms for SMD lamps and the DIP lamps
• Built on fully automatic assembly and testing integrated lines, good product consistency
