The Story

Kailh Box Switches

SMD LED compatible.

Pls, pay attention: Switch only.

Great for those who are a bit messier at the keys, Kaihua’s Kailh Box switches are IP56 rated to keep dust and moisture out. Created with a box around the cross stem instead of the cross stem just sticking up, they’re built to avoid corrosion and debris buildup. The box extends to the contact plate and leaf, providing extra protection. Utilizing the already popular Cherry MX form, Kaihua Kailh switches provide an easy transition so you don’t have to let go of your existing keycap collection. The MX-compatible stems provide a secure fit for any keycaps, PCBs, or plates you might want to assemble.

Specs

Box Jade

Operating force: 50 gf (+/-10 gf)
Tactile force: 55 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 1.7 mm
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

Box Navy

Operating force: 60 gf (+/-10 gf)
Tactile force: 65 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 1.7 mm
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

Speed Navy

Operating force: 60 gf (+/-10 gf)
Tactile force: 65 gf (+/-10 gf)
Pretravel: 1.4 mm (+/- 0.3 mm)
Pressure point: 1.3 mm
Total travel: 3.5 mm (+/- 0.3 mm)
Reset point: 1.3 mm

Box Black

Linear
Operating force: 60 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

Box Blue (white colored)

Clicky
Operating force: 50 gf (+/-10 gf)
Tactile force: 55 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 1.7 mm
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

Box Brown

Tactile
Operating force: 50 gf (+/-10 gf)
Tactile force: 60gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 0.6 mm
Total travel: 3.6mm (+/- 0.3 mm)
Reset point: 1.8 mm

Box Red

Linear
Operating force: 45 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

Box Royals

Tactile
Operating force: 75 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

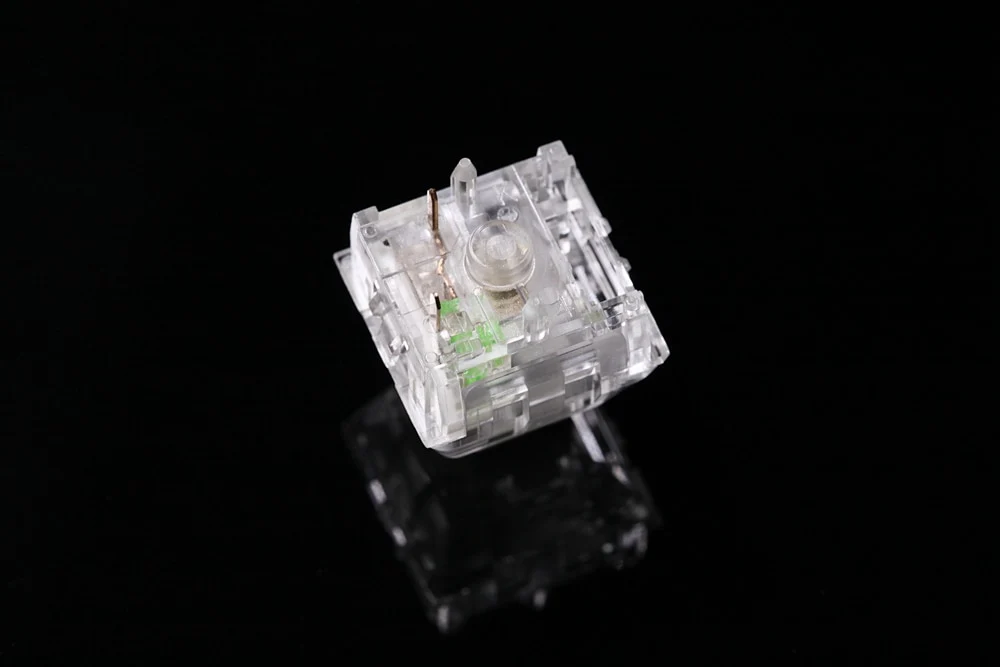

Kailh Crystal

Box switch stem
Tactile switch
5 pin (PCB mount)
Clear housing
50-million-keystroke cycle life
Actuation force, 62g: 67g (+/- 10gf)
Actuation force, 67g: 72g (+/- 10gf)

Kailh Pumper

Tactile mechanical switch
CyberPcolorway
Stainless steel spring (62 g or 67 g)
Plate mount, 3 pin
Lifespan: 50 million keystrokes
Actuation force (62 g): 67 g (+/-10 gf
Actuation force for (67 g): 72 g (+/-10 gf)

Box Dark Yellow

Linear
Operating force: 70 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

Box Pale Blue

Clicky
Operating force: 60 gf (+/-10 gf)
Tactile force: 65 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 1.7 mm
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

Box Burnt Orange

Tactile
Operating force: 60 gf (+/-10 gf)
Tactile force: 70gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 0.6 mm
Total travel: 3.6mm (+/- 0.3 mm)
Reset point: 1.8 mm
